Compact Power in a Lightweight Design

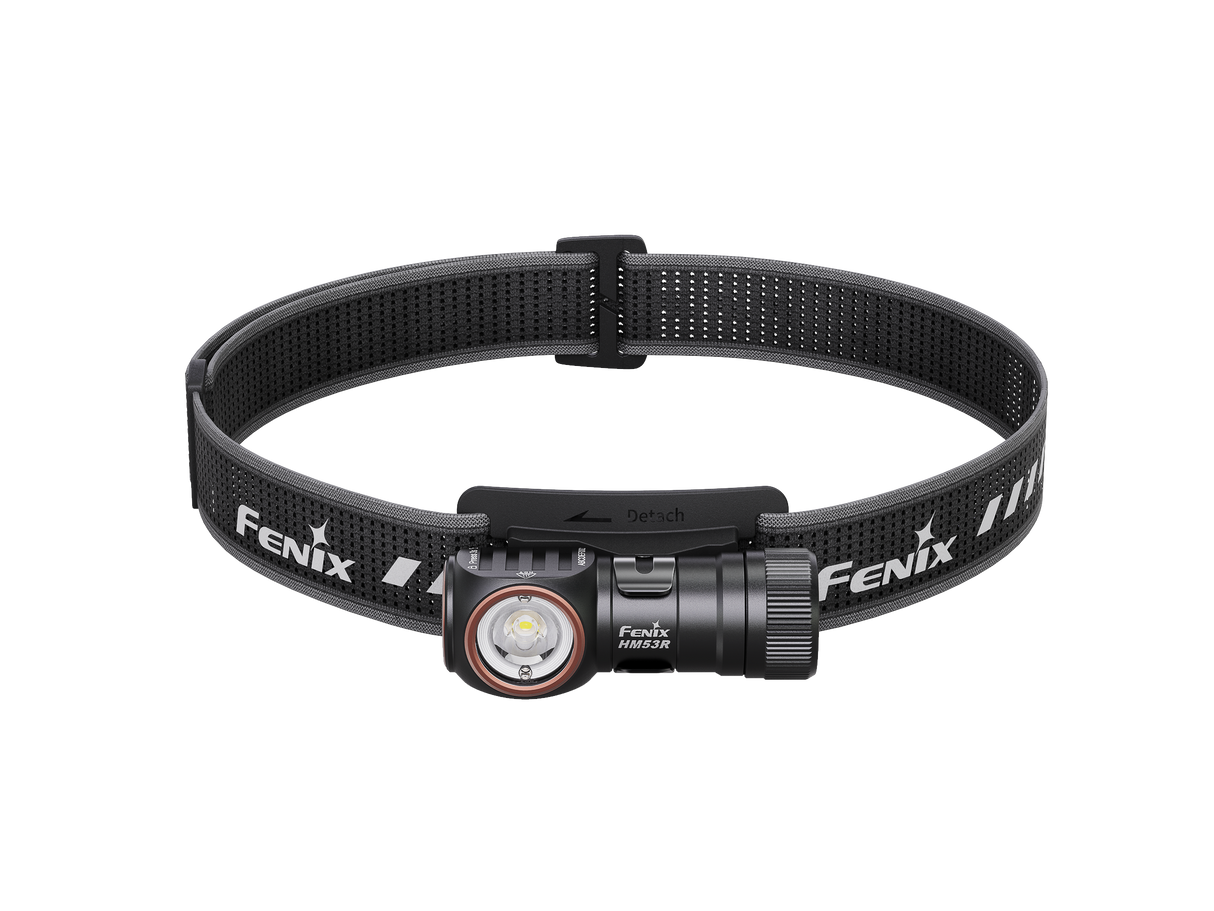

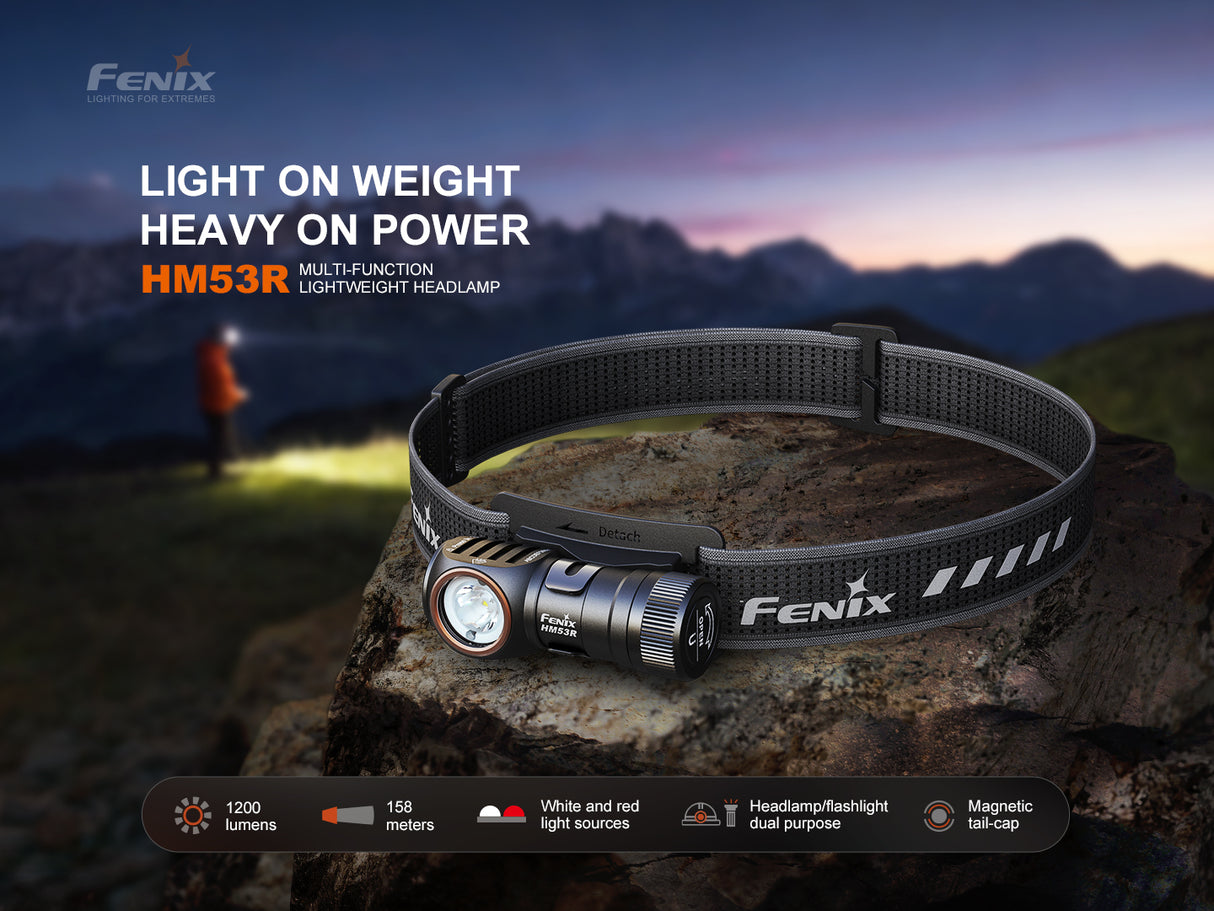

The Fenix HM53R is a compact yet powerful headlamp built for users who need dependable performance in a lightweight, versatile design. Delivering up to 1200 lumens with a beam distance of 172 yards, it provides impressive illumination for demanding tasks, whether you're navigating trails, working in tight spaces, or setting up camp after dark. Despite its high output, the HM53R remains exceptionally lightweight at 3.60 oz, making it ideal for extended wear during hiking, climbing, running, or professional work.
White and Red Light Versatility

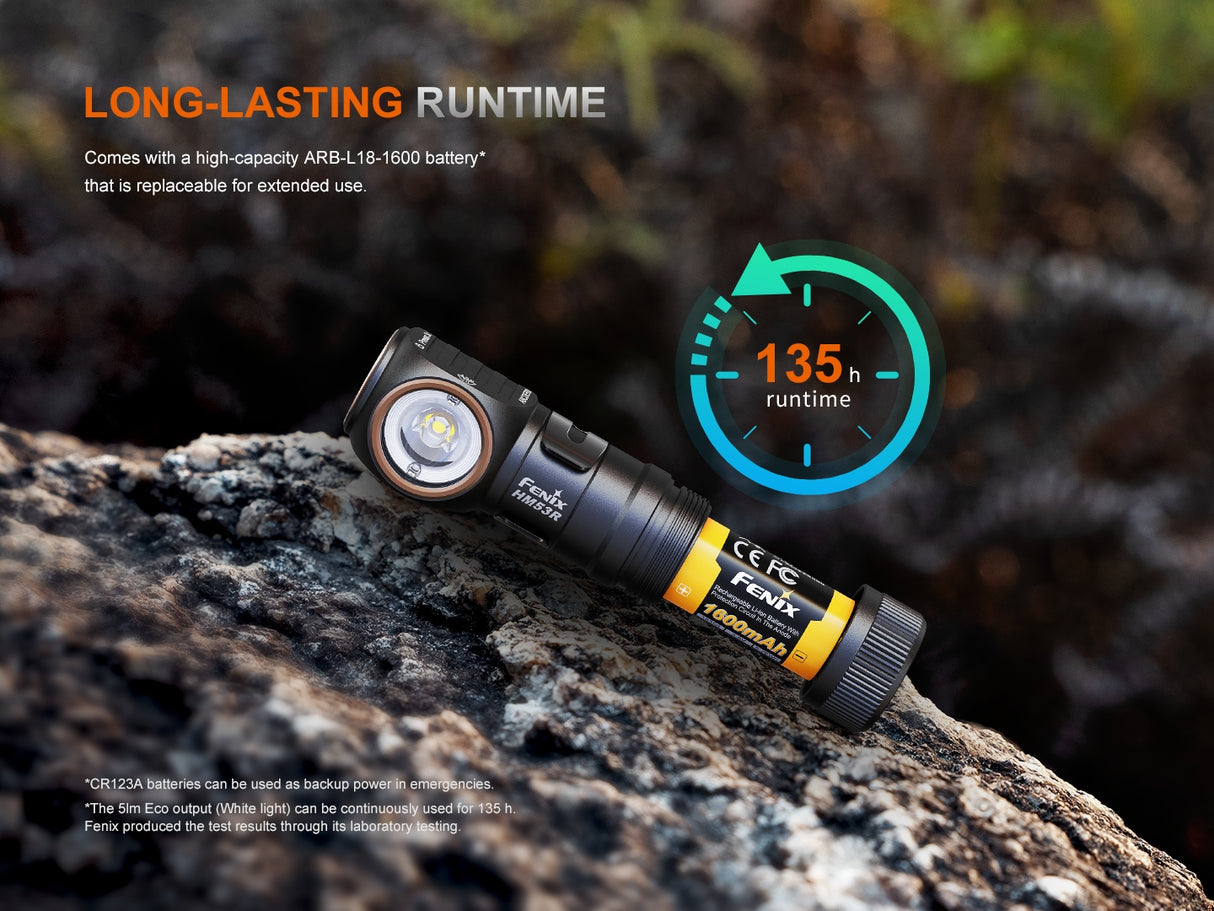

In addition to its powerful white beam, the HM53R features a dedicated red light mode designed to preserve night vision and reduce glare in dark environments. This makes it especially useful for nighttime navigation, reading maps, or maintaining visibility without disturbing others nearby. With multiple brightness levels and an ultra-efficient design capable of delivering up to 135 hours of runtime, the HM53R ensures reliable illumination whenever and wherever you need it.
Built for Flexibility and Everyday Use

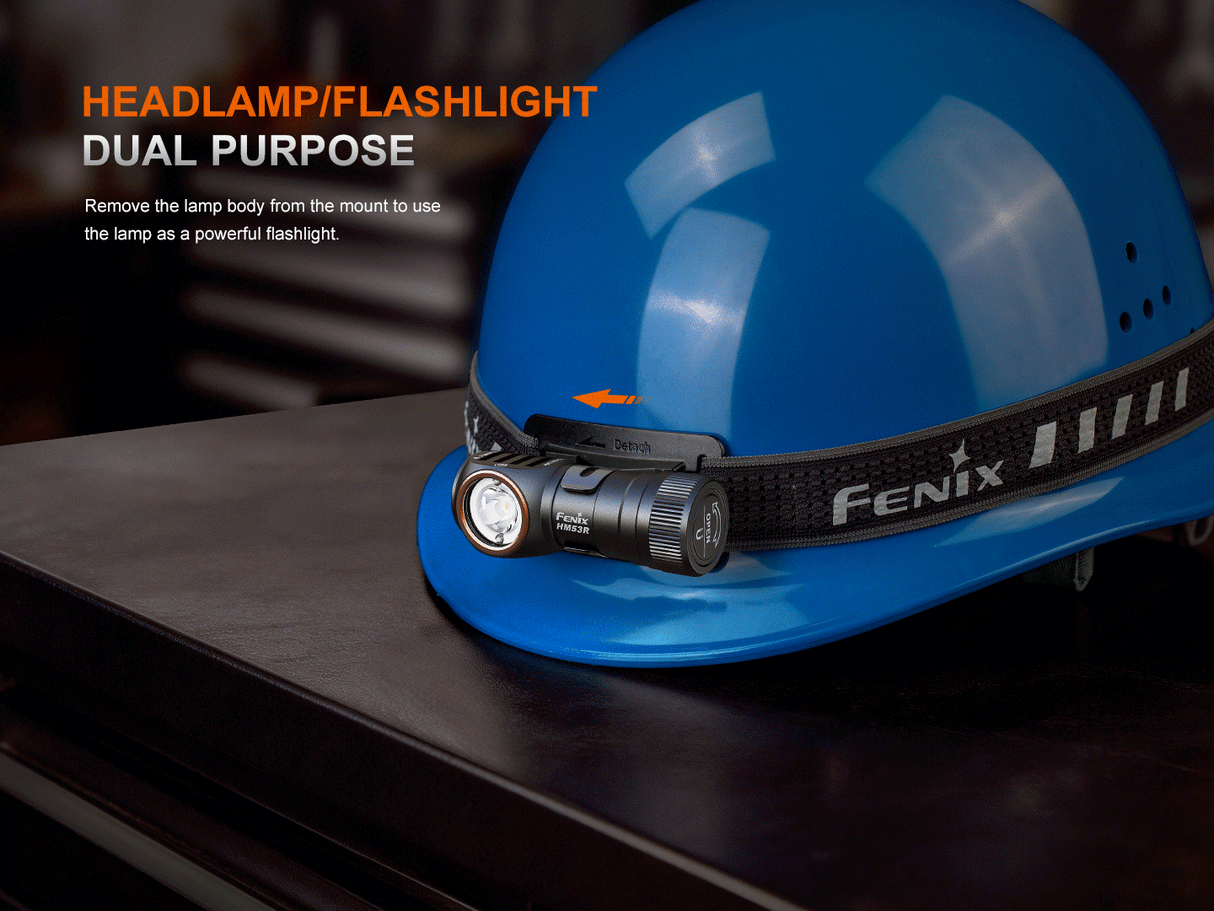

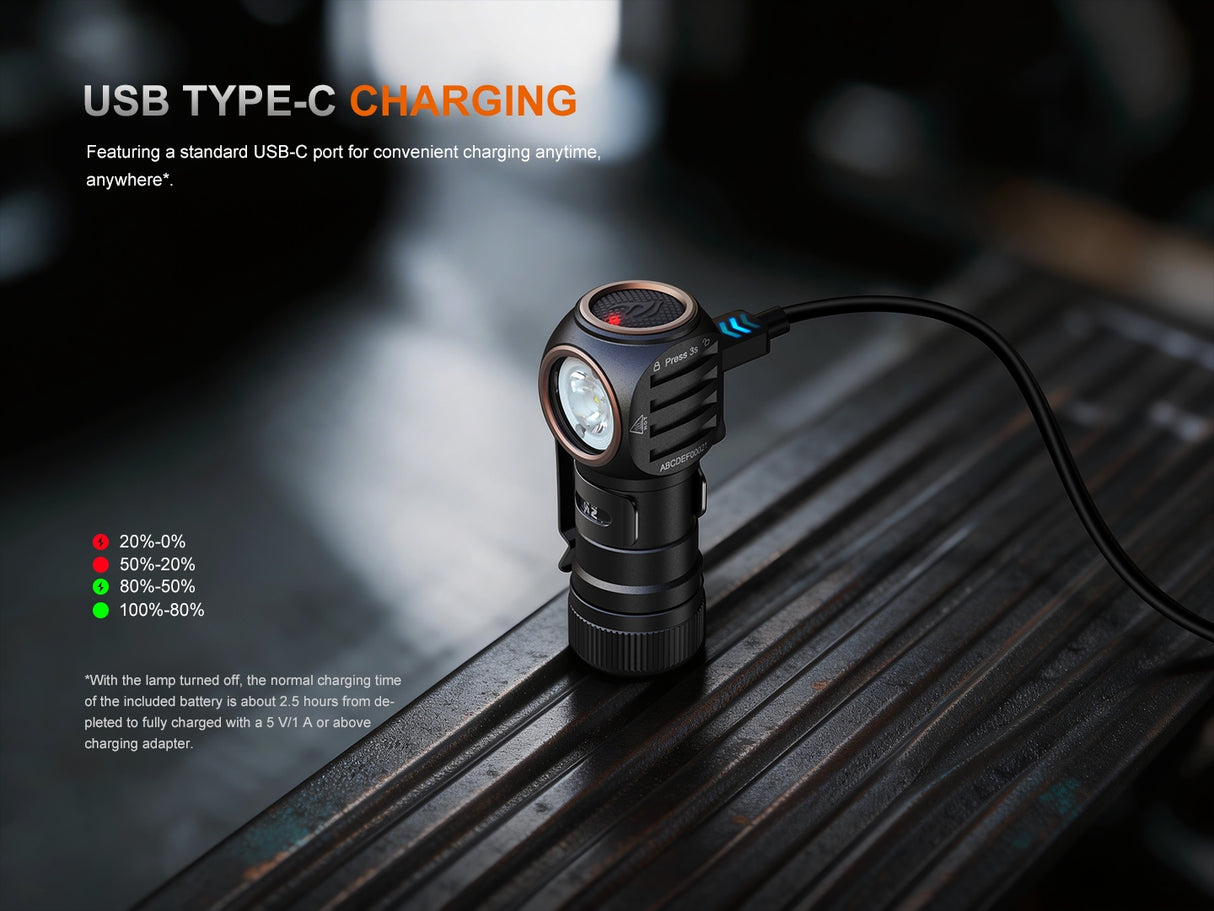

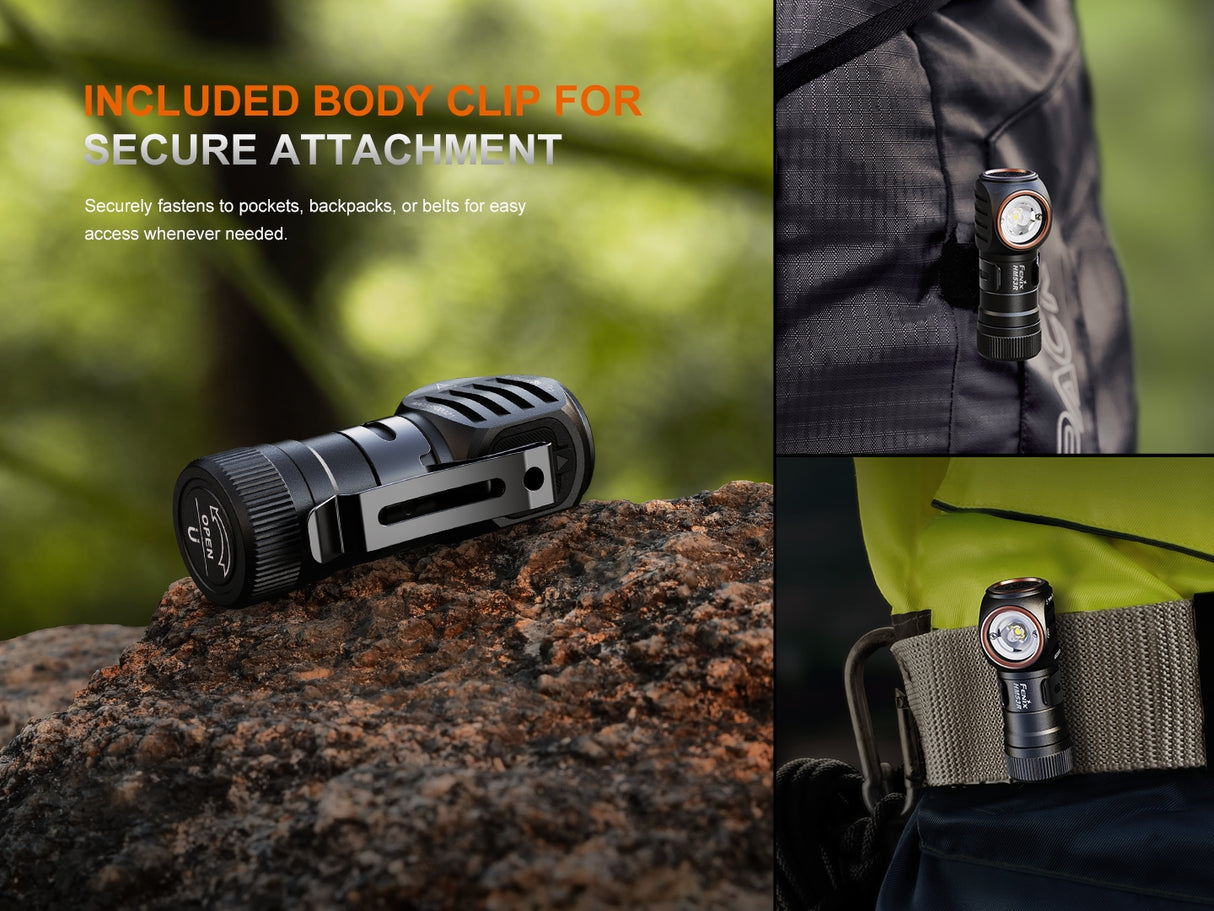

The HM53R easily detaches from the headband, allowing it to function as a compact handheld flashlight for added flexibility. A magnetic tail cap and included body clip make it easy to mount the light to metal surfaces or attach it to gear for hands-free use in a variety of situations. Combined with USB-C rechargeable convenience and the rugged durability Fenix is known for, the HM53R is built to perform in everything from outdoor adventures to demanding work environments.

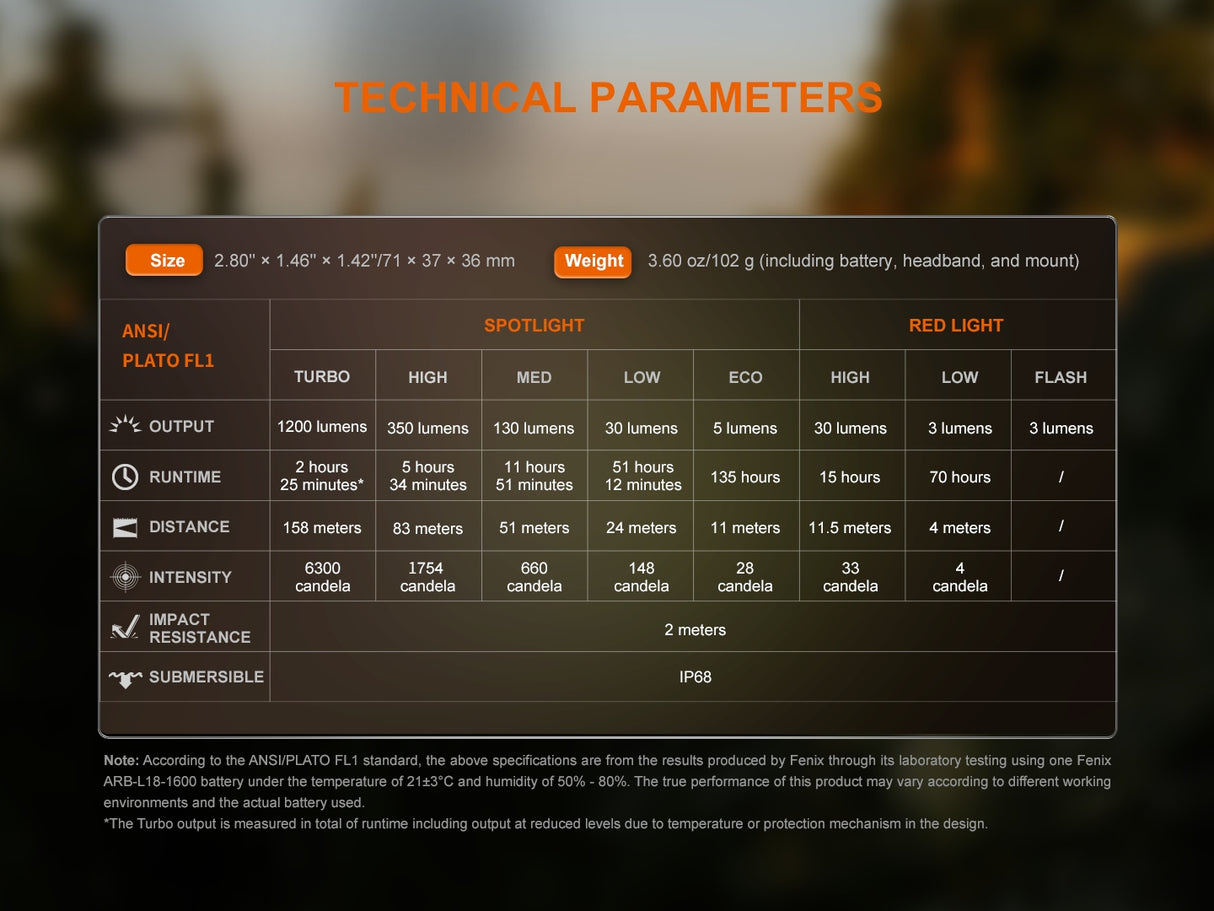

Specifications
Specifications
| LED | 1x Luminus SST-25 cold white LED and 2x OSRAM-2835 red LEDs |
|---|---|
| Maximum Brightness | 1200 lumens |
| Peak Beam Distance | 172 yards |
| Peak Beam Intensity | 6300 cd |
| IP Rating | IP68 |
| Impact Resistance | 2 m |
| Dimensions | L-2.8" x W-1.46" x H-1.42" |
| Weight | 3.6 oz |
BRIGHTNESS OUTPUTS
| MODE | OUTPUT | RUNTIME |
|---|---|---|
| Turbo | 1200 lumens | 2 hrs 25 mins |
| High | 350 lumens | 5 hrs 34 mins |
| Med | 130 lumens | 11 hrs 51 mins |
| Low | 30 lumens | 51 hrs 12 mins |
| Eco | 5 lumens | 135 hrs |
| MODE | OUTPUT | RUNTIME |
|---|---|---|
| High | 30 lumens | 15 hrs |
| Low | 3 lumens | 70 hrs |
| Flash | 3 lumens | - - |
Compatible Power Sources
| BATTERY TYPE | SIZE | NOMINAL VOLTAGE | COMPATIBLE |
|---|---|---|---|
| ARB-L18-1600 | 18350 | 3.6 V | Recommended |
| ARB-L18-1100 | 18350 | 3.6 V | Usable |
| ARB-L18-1100P | 18350 | 3.6 V | Usable |
| Other Rechargeable Battery (Li-ion) | 18350 | 3.6 V | Caution |
| Other Rechargeable Battery (Li-ion) | 16340 | 3.6 V | Caution |
| Non-rechargeable Battery (Li-ion) | CR123A | 3.0 V | Caution |
